V-DBK800 Tire Shredders


V-DBK800 Tire Shredders | VANEST

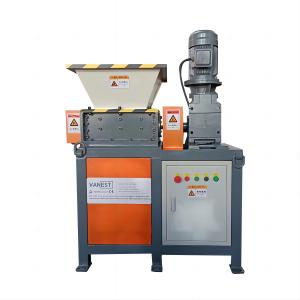

V-DBK800 Tire Shredders Machine deal with a wide variety of waste materials including scrap metal, car body, tire, auto parts, aluminium, cables, plastic, wood, paper and computer hard drives. VANEST supplies Industrial metal shredders for every type of application, whether it’s in your factory, laboratory or outside in your yard.


Working principle of V-DBK800 Tire Shredders:
The double-shaft shredder is sheared by the blades on the two shafts to meet the requirements of shredding materials.
The size after shredding is related to the thickness of the shredding blade and the number of teeth.
The thinner the blade, the smaller the size of the shredded material, the more the number of cutter teeth, the shorter the length of the shredded material.


Features:
The blade holder and blade on the rotor can be disassembled for easy cleaning and maintenance.
Each moving knife has 4 cutting edges, which can be rotated 90° after wear to continue to use.
The main shaft is driven by the gear reduction box, running smoothly, low noise, large torque.
Adopt PLC program control system, can automatically reverse, make the machine run stably.
The box body is welded and tempered after welding to eliminate the welding stress.
The installation position of moving knife is precisely machined by machining center to ensure that the clearance between each moving knife and fixed knife is the same.
The moving tool holder is embedded in the tool shaft with high strength screws, and can prevent welding type after long-term vibration caused by the phenomenon of knife drop.
Convenient transportation after tearing, can reduce transportation cost, increase transportation efficiency, convenient secondary processing.

Applications:

V-DBK800 Tire Shredders Machine is especially for shredding metal,fabric,waste tires,various solid materials, waste plastic, plastic film, plastic pipe, fiber, wood, animal and paper which the normal crusher can not handle.


The shredder can process materials, and different models are used for different materials. Before ordering, please contact our sellers and provide your raw materials.





Model
V-DB300
V-DB400 V-DB500 V-DBK600 with PLC
V-DBK800 with PLC
Motor
3KW 4KW 7.5KW(2 units) 11KW (2 units)
22KW (2 units)
Voltage
380v 50hz 3phase
380v 50hz 3phase
380v 50hz 3phase
380v 50hz 3phase
380v 50hz 3phase
Input rotary speed
16rpm/min 15rpm/min
15rpm/min
16rpm/min
16rpm/min
Feeding hole size
500*500mm 600*500*300mm
700*600*300mm 1000*800*500mm
1500*1000*600mm
Blades quantity
24 pieces
26 pieces
24 pieces
29 pieces
26 pieces
Machine size(L*W*H)
1420*570*1429mm
1540*600*1450mm
1840*700*1600mm
1860*920*1800mm
2280*1160*2220mm
Machine weight
500KG 800KG
1000KG
1800KG
3000KG
