The Common Type Automatic Nail Making Machine is specially designed to make the common nails. We have all types nail making machine for making the nails length from 1 inch to 8 inchs. Generally, the 1-4 inchs and the 1-6 inchs will be the best choices for the nail manufacturing industry beginners.

Common Nail Types：
Common Nails are mainly consist of three parts: a wide head, a smooth shank and a dimoud-shaped point.

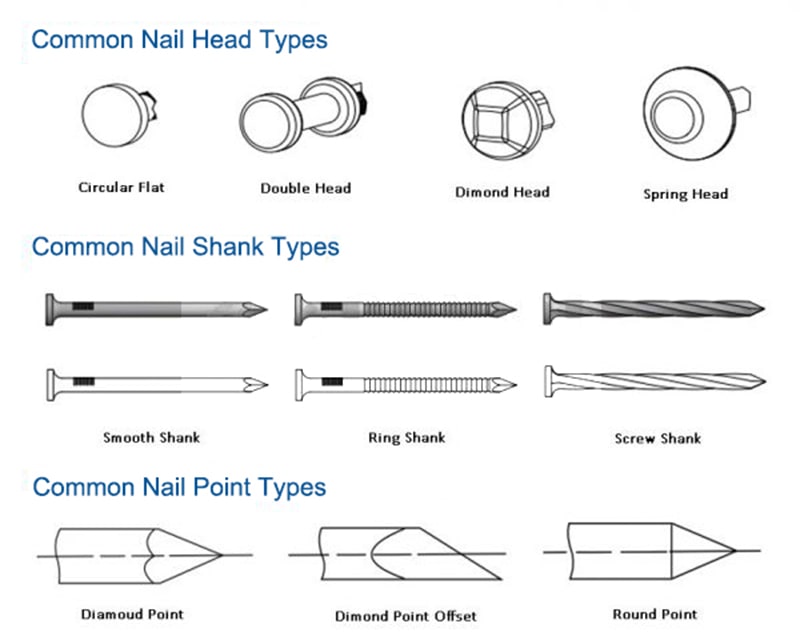

The common Nail Head, Shank, Point  are:
● Nail Head: Circular Flat, Double Head, Dimond Head, Spring Head
● Nail Shank: Smooth Shank, Ring Shank, Screw Shank, Square Twisted Shank
● Nail Point: Dimond Point, Dimond Point offset, Round Point

Common Nail Production Line:

1. Wire Straightening: put the wire coil on pay-off rack and input wire to straightening device for straightening.
2. Wire Feeding: The feeding box will grip and feed the steel wire continuously.
3. Nail head Forming: When the steel wire is clamped by the gripping mechanism, the punch system will punch the wire to form the nail head.
4. Nail Tip Cutting: After the extrusion is completed, the cutting mechanism cuts the wire, and an emergency return mechanism can be used.
5. Final Step: The gripping die open, the nail is dropped down and the next nail will be made continuously.

Automatic Common Nail Making Machine
Generally, the 1-4 Inch Nail Making Production Line and 1-6 Inch Nail Making Production Line are the popular choices for our clients. More than 80% foreign clients choose to manufacture the 1-4 Inch common nails or the 1-6 Inch common nails.

Below are the proposals for setting the Basic Nail Making Factory:

1-4 Inch Nail Making Production Line:
● Nail Making Machine   V-2C
● Nail Making Machine   V-4C
● Nail Polishing Machine with capacity 1000 kg
● Nail Mould Grinding Machine

1-6 Inch Nail Making Production Line:
● Nail Making Machine   V-2C
● Nail Making Machine   V-4C
● Nail Making Machine   V-5C
● Nail Polishing Machine with capacity 1000 kg
● Nail Mould Grinding Machine

Advantages of the machine：
● Can make a wide range of wire nails according to different models.
● Fully automatic.
● Low running cost.
● Cheap spare parts price.
● Low power consumption as with just 4 kilowatts of power.
● Simple construction and Easy on nail adjustment:
● ONLY 10 minutes To change the nail diameter and change the nail mold. ONLY 5 minutes To adjust the nail length, nothing needs to be changed.
